If you’ve ever struggled with installing a mortise lock, you know how frustrating and time-consuming it can be to cut accurate slots in the door edge by hand. Even with careful measuring and a steady hand, using only chisels, drills, or saws often leads to uneven cuts, misaligned hardware, or worse—a weakened door structure that compromises security. That’s where the best door lock mortise jig kit becomes an essential tool.
A mortise jig is a specially designed guide that works with a router or drill to create perfectly straight, consistent, and properly sized slots for your mortise lock. Instead of spending hours measuring and correcting mistakes, the jig holds everything in place and allows you to cut with confidence. The result? Professional-grade precision, cleaner finishes, and faster installations.
Whether you’re a DIY homeowner taking on your first lock upgrade or a professional carpenter or locksmith who installs multiple doors each week, the right jig kit can transform how you work. For DIYers, it removes the intimidation factor by offering easy alignment and depth control. For professionals, it boosts efficiency and repeatability, ensuring every door in a project is done quickly and accurately without sacrificing quality.
Another major advantage is versatility. Many jig kits are adjustable, meaning they can accommodate different door thicknesses and lock sizes—so you’re not stuck buying a separate tool for each type of project. This makes them an excellent long-term investment for both occasional use and regular professional jobs.
In this comprehensive guide, we’ll walk you through everything you need to know about choosing the best door lock mortise jig kit.

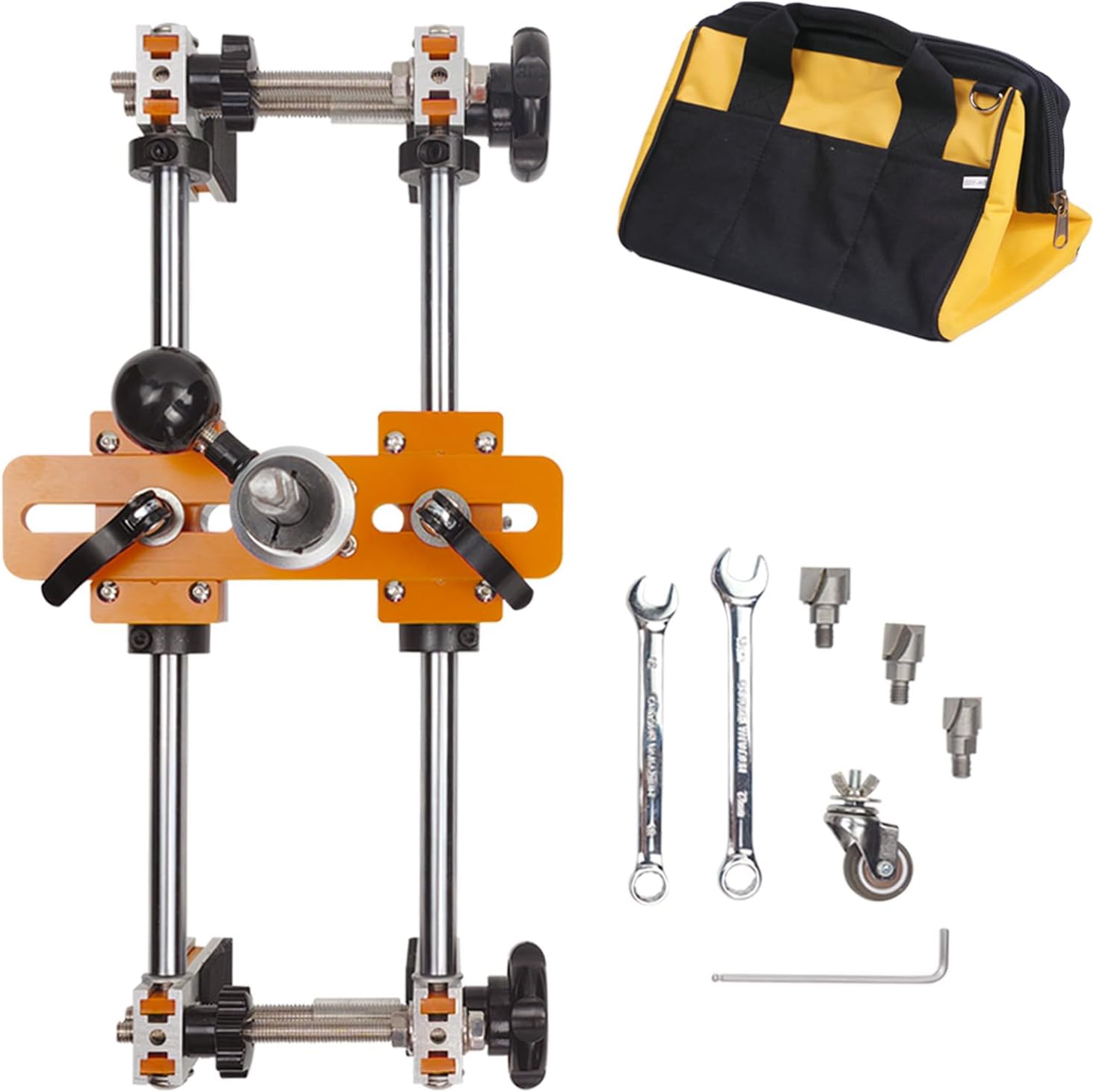

Best Door Lock Mortise Jig Kit Comparisons
Here are the top 5 door lock mortise jig kits worth your money:
What is the Most Common Mortise Lock Size?
Mortise locks come in various sizes, but the most commonly used for residential doors are:
- 2 ½ inches (64mm) backset
- 3 inches (76mm) backset
- 3 ½ inches (89mm) backset
Among these, 2 ½ and 3 inches are the most standard in modern homes. Commercial doors, however, often use deeper backsets like 3 ½ or 4 inches for added durability.
When buying a mortise jig kit, ensure it accommodates the most common lock body widths (about 0.75″ to 1″) and faceplate sizes. A versatile jig should allow you to adjust for different lock dimensions without requiring multiple kits.
Key Factors to Consider When Buying a Mortise Jig Kit
Choosing the right mortise jig kit can make the difference between a precise, professional-grade installation and a frustrating, error-prone experience. With so many options available, it’s important to understand the key factors that affect performance, durability, and ease of use. Here’s a detailed breakdown of what to look for:
Compatibility with Door Thickness
One of the most critical considerations is whether the jig can accommodate the thickness of your doors. Most residential and commercial doors fall between 1 ⅜ inches and 2 inches thick, and a good mortise jig kit should be adjustable within this range.
If the kit doesn’t allow for easy adjustments, you may end up with misaligned locks or uneven cuts, which can compromise the door’s functionality and security. Some professional-grade jigs even offer extra-wide adjustment ranges, making them suitable for both standard and custom doors, including solid-core and panel doors.
Always measure your door’s thickness before buying a kit, and check the manufacturer’s specifications to ensure compatibility.
Ease of Use
Even a high-quality jig is ineffective if it’s difficult to set up or operate. Look for jigs with:
- Clear measurement guides: Laser-etched or printed scales make it easy to position the jig accurately.
- Adjustable templates: These allow you to fine-tune the mortise size and placement without guesswork.
- User-friendly clamping systems: A good clamping mechanism holds the jig firmly in place without requiring excessive effort or tools.
Ease of use is especially important for DIY homeowners who may not have professional experience. A beginner-friendly jig will allow you to achieve accurate results from your first attempt, reducing frustration and the risk of mistakes.
Build Quality & Material
Durability and stability are crucial in a jig kit. The best kits are made from:
- Aluminum alloy: Lightweight, corrosion-resistant, and strong enough to withstand repeated use.
- Reinforced steel: Offers maximum durability for heavy-duty or professional applications.
Avoid kits with predominantly plastic components, especially in parts that guide the router or drill. Plastic may reduce weight, but it can warp or wear down over time, leading to inconsistent cuts and decreased accuracy.
Check user reviews for comments on long-term durability—kits that maintain precision after multiple installations are often the best value.
Cutting Method
Mortise jig kits can be designed for different cutting methods:
- Router-compatible jigs: Deliver smooth, clean cuts and are ideal for experienced users or professional carpenters. They often provide more control over depth and width, resulting in precise mortises.
- Drill-based jigs: Use drill bits to remove most of the material, followed by finishing with a chisel. These are more beginner-friendly and typically easier to handle for DIYers who may not own a router.
Selecting the right cutting method depends on your skill level, tools on hand, and desired finish quality.
Portability
If you’re a professional installer or often work on multiple job sites, portability is a key factor. Look for kits that are:
- Compact and lightweight, making them easy to carry and store.
- Integrated carrying cases or protective boxes, which prevent parts from getting lost or damaged.
A portable jig ensures you can efficiently move between doors or sites without compromising accuracy.
Included Accessories
Many kits come with additional tools that enhance value and convenience, such as:
- Router bits and drill bits
- Guide bushings
- Depth stops and spacers
- Clamping hardware
Kits that include these accessories save money and allow you to start installing locks immediately. Conversely, a kit sold without essential components might require extra purchases, reducing overall value.
Price vs. Value
Finally, it’s important to weigh cost against features and durability. The cheapest kit isn’t always the best choice. Instead, focus on:
- Precision and adjustability
- Material quality
- Included accessories
- Ease of setup and use
Investing slightly more in a durable, well-designed jig often pays off in time saved and superior results. Consider the number of doors you’ll be installing—if it’s a one-off project, a mid-range kit may suffice, but for professional use, a premium jig is a better long-term investment.
Luckyway Door Lock Opener Mortiser Kit
The Luckyway Mortise Jig Kit is designed for DIY homeowners who want to install mortise locks without professional help. Built with a strong aluminum body and precise guide system, this kit supports most standard door thicknesses and allows smooth, clean mortises.
The adjustable depth feature ensures compatibility with different lock sizes, making it versatile for both residential and light commercial use. Its easy-to-follow design reduces setup time, making it beginner-friendly while still reliable for professional carpenters.
Key Features
- Fits doors from 1 ⅜” to 2” thick.
- Adjustable depth and width for multiple lock sizes.
- Durable aluminum alloy construction.
- Easy clamping system.
Pros
- Beginner-friendly setup.
- Works with most mortise lock sizes.
- Affordable for DIY use.
Cons
- Not as durable as heavy-duty professional kits.
- May require practice for perfectly smooth cuts.
Universal Lock Mortise Door Kit
This universal mortising jig kit is a solid option for both DIYers and contractors. Its standout feature is the compatibility with multiple cutting tools, including drills and routers, making it more versatile than some competitors.
The heavy-duty frame ensures stability during use, and the adjustable guide plates allow precise alignment with your lock placement. With support for a variety of lock body sizes, this jig is particularly useful for homeowners working on multiple door types.
Key Features
- Multi-tool compatibility (drill & router)
- Adjustable guide plates for precision
- Strong metal frame
- Works with standard residential doors
Pros
- Versatile tool compatibility.
- Sturdy and durable frame.
- Suitable for both DIY and pro use.
Cons
- Slightly heavier than compact models.
- Higher learning curve for beginners.
DUEBEL Mortise Lock Installation Kit
The DUEBEL Mortise Jig Kit is built for users who value accuracy above all. Featuring a strong aluminum alloy build, this kit comes with precise depth and width adjustments, ensuring perfect alignment every time.
It includes a drill bit system with guiding sleeves, making it especially friendly for those without a router. Its compact and lightweight design makes it a great option for on-site installations. Suitable for both wood and composite doors, the DUEBEL kit is a budget-friendly yet effective choice.
Key Features
- Precision adjustment system.
- Aluminum alloy frame.
- Drill-based operation.
- Lightweight and portable.
Pros
- Excellent precision.
- Easy to transport.
- Works well on wooden and composite doors.
Cons
- Limited accessories included.
- Not ideal for heavy commercial use.
JSZYO Mortise Lock Jig Kit
The JSZYO Mortise Jig Kit is a premium option designed with tungsten steel components for maximum durability. This jig works with electric drills and includes multiple cutting guides for flexible lock installation.
Its advanced clamping system provides stability, reducing the risk of uneven cuts. Ideal for professionals, this kit is well-suited for handling repetitive installations without losing accuracy. If you need a long-lasting jig that holds up under frequent use, JSZYO offers great value despite the higher price point.
Key Features
- Tungsten steel cutting system
- Stable clamping for precision
- Supports electric drill operation
- Designed for heavy-duty use
Pros
- Extremely durable build.
- Stable and accurate.
- Great for professional installers.
Cons
- Pricier than other kits.
- Heavier, less portable.
MJTXiaoWu Aluminum Mortise Lock Jig Kit
The MJTXiaoWu Mortise Jig Kit is designed with an all-aluminum frame for strength and longevity. It features adjustable depth stops and a precision guide system, ensuring compatibility with a wide range of mortise lock bodies.
Lightweight yet sturdy, this kit balances professional-grade features with DIY-friendly usability. Its clean design makes it easy to set up, and the included accessories add value compared to barebones kits. Perfect for both homeowners and small contractors, it delivers consistent results without overcomplicating the process.
Key Features
- Full aluminum construction
- Adjustable depth stops
- Lightweight yet durable
- Comes with multiple accessories
Pros
- Strong yet lightweight.
- Easy to set up.
- Great value for money.
Cons
- Accessories quality varies.
- Not as precise as premium kits.
FAQ Section (People Also Ask)
Do I need a special jig to install a mortise lock?
Technically, you can cut a mortise slot using hand tools like chisels, drills, and hammers, but the process is time-consuming and leaves plenty of room for error. A poorly cut mortise can weaken the door, misalign the lock, or make it difficult to operate smoothly.
A mortise jig kit eliminates these issues by acting as a guide template that ensures perfectly straight, accurate cuts every time. This is especially important if you’re working on multiple doors, since it saves hours of layout work and prevents small inconsistencies that could affect lock performance.
For DIY homeowners, a jig kit can turn a difficult project into something manageable. For professionals, it’s about efficiency and repeatability—the ability to deliver clean, uniform results across dozens of installations. In short, while not strictly necessary, a mortise jig is the tool that makes the job faster, easier, and more professional-looking.
Can a mortise jig kit be used on metal doors?
Most door lock mortise jig kits on the market are designed for wooden or composite doors, as these materials are easier to cut with standard drill bits or router bits. Attempting to use the same kit on a metal door can cause premature wear on the bits, inaccurate cuts, or even damage to the jig itself.
If you need to install a mortise lock in a metal door, you’ll require specialized carbide drill bits, industrial routers, or metal-cutting mortising machines. In many cases, professional locksmiths or contractors use specialized rigs designed specifically for steel and aluminum doors.
For most homeowners, the simplest solution is to use a jig kit for wooden doors inside the home and leave metal door installations to experienced professionals. This ensures safety, accuracy, and compliance with local building standards.
Are mortise locks better than cylindrical locks?
When it comes to security and durability, mortise locks generally outperform cylindrical locks. A mortise lock sits inside a carved pocket within the door, which makes it sturdier and less prone to forced entry. They often include heavier components, latch bolts, and deadbolts, making them ideal for exterior doors that require a higher level of protection.
On the other hand, cylindrical locks (also known as tubular locks) are more common in interior doors, where ease of installation and cost-effectiveness are priorities. They require only a round borehole and are quicker to install without specialized tools.
The tradeoff is that cylindrical locks are less durable in the long run and not as secure against heavy force or tampering. Mortise locks, while harder to install, provide long-lasting strength and higher security, which is why many homeowners and businesses prefer them for entry doors. A mortise jig kit makes installing these stronger locks much more approachable, even for DIYers.
Can beginners use a mortise jig kit?
Yes—most modern mortise jig kits are beginner-friendly. They typically come with adjustable guides, depth stops, and clamping systems that remove much of the guesswork. Even if you’ve never installed a mortise lock before, the jig provides a step-by-step framework for accurate cuts.
The key for beginners is to practice first on scrap wood. This allows you to get comfortable with setting the jig, adjusting depth, and handling the drill or router before working on the actual door. Many kits also include clear instructions, and some manufacturers provide video tutorials to help users visualize the process.
By practicing and following the jig’s guide system, even first-timers can achieve results comparable to a professional installer. For homeowners who value both security and a clean finish, a jig is an excellent investment.
How long does it take to install a mortise lock with a jig kit?
The installation time varies based on experience, door material, and the jig kit used. For a complete beginner, the process usually takes 20–30 minutes because extra time is needed for setup, measuring, and making sure everything is aligned correctly.
For someone with experience or a professional carpenter, the same task can take as little as 10–15 minutes per door. This is because the jig eliminates repetitive measuring and marking, allowing for consistent results in less time.
Keep in mind that the first door always takes longer as you familiarize yourself with the jig. Once you’ve practiced on one or two doors, the process becomes much faster and smoother. In fact, this efficiency is why professionals rely heavily on mortise jigs—they save significant time when working on multiple installations across a project.
Conclusion
Choosing the best door lock mortise jig kit depends on your needs:
- For DIY homeowners, the Luckyway or DUEBEL kits offer affordability and simplicity.
- For professionals, the JSZYO or MJTXiaoWu kits provide greater durability and accuracy.
- If you want a balance of versatility and strength, the Universal Lock Mortise Kit is a solid all-rounder.
No matter which option you pick, investing in a high-quality jig will save time, reduce mistakes, and give your doors a polished, professional finish.
