A router table is an essential woodworking tool that transforms a handheld router into a stationary, precision machine. Whether you’re a hobbyist or professional woodworker, understanding how to use a router table effectively can significantly enhance your woodworking capabilities and the quality of your projects.
Router tables provide stability, precision, and safety that’s difficult to achieve with handheld routing operations. They allow you to perform complex cuts, create decorative edges, and make precision joinery with consistency and repeatability.
In this comprehensive guide, we’ll walk you through everything you need to know about how to use a router table, from setup and safety to advanced techniques that will elevate your woodworking skills.
Types of Router Tables
Before diving into usage techniques, it’s important to understand the different types of router tables available:
Benchtop Router Tables
These compact units are designed to sit on top of a workbench. They’re ideal for smaller workshops and hobbyists with limited space. While they may have smaller surface areas, many offer excellent functionality for most routing tasks.
Floor-standing Router Tables
Larger and more robust, these tables come with their own stands and typically offer more surface area, enhanced stability, and additional features. They’re perfect for professional woodworkers or those with a dedicated workshop space.
Cabinet-style Router Tables
These premium options feature enclosed cabinets that help collect dust and provide additional storage space. They often come with premium fences, larger tabletops, and more robust construction.
Essential Components of a Router Table
Understanding the parts of your router table is crucial for effective operation:
The Tabletop
The flat surface where your workpiece rests. Quality tabletops are made from durable, flat materials, such as MDF with laminate surfaces or solid aluminum plates.
The Fence
A crucial component that guides your workpiece and provides stability during cuts. Look for fences with adjustable faces and dust collection capabilities.
The Router Mount
This holds your router securely underneath the table. Most tables use either a plate system or a direct-mount design.
The Insert Plate
A removable plate that allows you to change router bits and access the router without removing it from the table.
Dust Collection System
Essential for maintaining a clean workspace and protecting your health. Many tables include built-in dust ports.
Safety Precautions When Using a Router Table
Safety should always be your top priority when working with power tools. Follow these essential safety guidelines:
Personal Protective Equipment
- Always wear safety glasses to protect your eyes from flying debris.
- Use hearing protection as router tables can be loud.
- Consider a dust mask or respirator, especially when working with certain woods.
- Avoid loose clothing, jewelry, or anything that could get caught in the router.
Router Table Safety Practices
- Always use push blocks or push sticks when feeding material.
- Never position your hands directly behind or in line with the cutter.
- Keep the fence close to the bit to minimize exposure.
- Ensure the workpiece is firmly against the fence and table before starting.
- Use feather boards for additional control and safety.
- Disconnect power when changing bits or making adjustments.
Workspace Safety
- Maintain adequate lighting around your router table.
- Keep the area clean and free of clutter.
- Ensure proper dust collection is in place.
- Keep a first aid kit accessible in your workshop.
Setting Up Your Router Table
Proper setup is critical for achieving good results and ensuring safety:
Mounting the Router
- Choose a router with appropriate power for your needs (1.5-3 HP is typical).
- Securely mount the router to the table following the manufacturer’s instructions.
- Ensure the router base is level with the table surface.
- Check that all mounting screws are tight.
Installing Router Bits
- Disconnect power before changing bits.
- Use two wrenches to properly tighten the bit.
- Insert the bit to the appropriate depth (typically until the shank bottom meets the collect).
- Ensure at least 80% of the bit shank is inserted into the collect.
- Tighten securely and double-check before use.
Adjusting the Fence
- Position the fence parallel to the miter slot.
- Set the appropriate distance from the bit based on your cut.
- Lock the fence securely in place.
- Check that the fence faces are properly aligned.
Setting Bit Height
- Use a height gauge or measuring tool for precision.
- Make small adjustments and test on scrap wood.
- For profile bits, set the height based on the desired depth of cut.
- For joinery bits, match the height to your workpiece thickness.

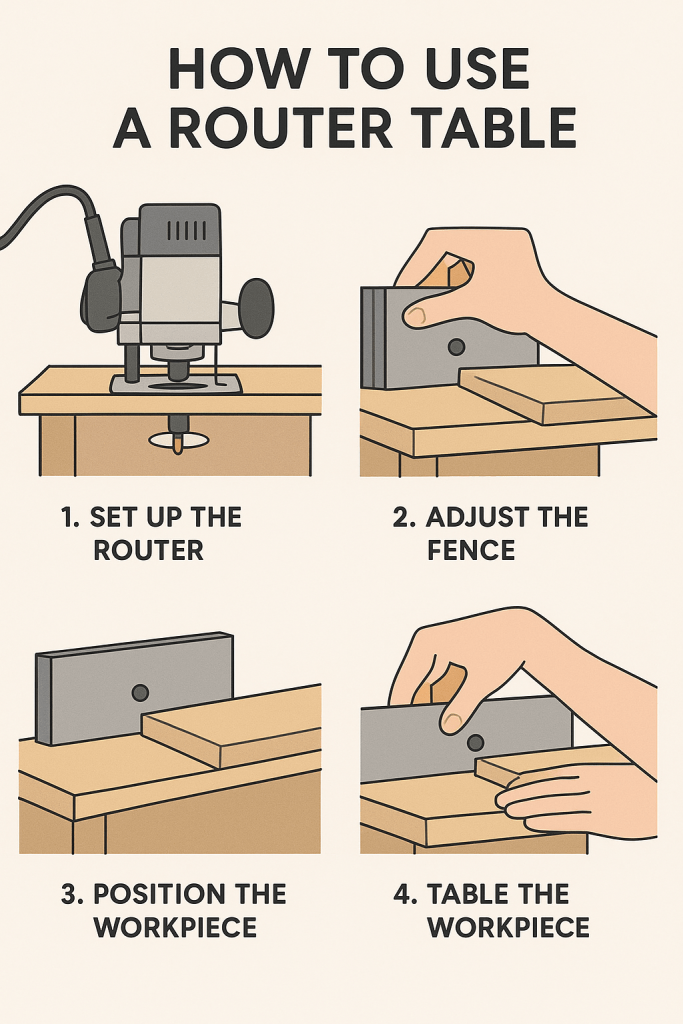

Step-by-step: How to Use a Router Table
Prep & safety
- Unplug the router; wear eye/ear protection and a snug-fitting top (no dangling sleeves), and use a dust mask if needed.
- Clear the tabletop; set up good lighting and dust collection.
Choose and install the bit
- Pick the correct bit for the job (straight, flush-trim, round-over, chamfer, rabbet, etc.).
- Insert the shank fully, then pull it back a few millimeters so it isn’t bottomed out; tighten the collet firmly.
- Fit the smallest insert ring that still clears the bit.
Set router speed
- Larger diameter bits need slower RPM; smaller bits can run faster. Check your bit’s guidance and set the speed dial accordingly.
Set fence position
- For edge profiles, align the fence faces so they just “kiss” the bearing (or are even with the cutting circle if no bearing).
- For grooves/dados/rabbets, set the fence to expose only the cutting width you need; lock it square to the miter slot.
Set bit height
- Raise/lower the bit to match the profile depth you want. A small steel rule or setup block helps; lock the height.
Add work holding
- Clamp featherboards to the fence (side pressure) and tabletop (down pressure) to keep the work tight and steady.
- Keep push blocks/sticks ready—use them, not your fingers, near the bit.
Plan the feed direction
- Feed right-to-left against the fence. The bit spins clockwise; pushing right-to-left lets the cutter pull the work into the fence, not away from it.
- For freehand template work with a bearing, still move the work so the bit is cutting “against” the feed (conventional cut), not with it (climb cut).
Make a test cut
- Use a scrap of the same species/thickness. Check the profile depth/width and adjust fence/height as needed.
Route the work
- Hold the board flat to the table and snug to the fence; maintain steady, even feed pressure.
- Keep the stock moving—pauses cause burn marks. If the router strains or chatters, reduce depth and take multiple light passes.
Handle end grain correctly
- When profiling a frame, cut end grain first on both ends, then the long edges. This way, any tear-out on the ends gets cleaned up by the long-grain passes.
- For end-grain grooves or coping cuts, use the miter gauge or a coping sled with a backer board to prevent blow-out.
Special operations (quick recipes)
- Round-over/chamfer: Fence even with the bearing; height sets reveal. One or two light passes.
- Rabbet: Use a bearing-guided rabbet bit or offset the fence to expose the cut width; sneak up with test cuts.
- Groove/Dado: Straight bit; position fence for center or offset; two passes for a perfect fit if needed.
- Flush trim/template: Bearing follows a template; secure the template well and use shallow passes.
Finish up
- Power off; wait for the bit to stop before clearing offcuts.
- Vacuum the table, blow dust from the fence faces, and loosen featherboards (don’t leave them compressed).
- Wipe the bit clean; a little pitch cleaner extends bit life.
Pro tips & common mistakes to avoid
- Take several shallow passes—don’t try to hog off the full amount in one go.
- Keep the insert ring close to the bit to support stock and reduce tear-out.
- Never route tiny parts freehand; use a sled/jig.
- If the work wants to “self-feed,” stop—your cut setup is causing a climb cut. Re-orient so you’re cutting conventionally.
Maintenance and Care for Your Router Table
Cleaning and Lubrication
- Keep the tabletop clean and free of dust and resin buildup.
- Lubricate moving parts, like fence adjustments, periodically.
- Clean router bits after use to remove resin and debris.
- Check and clean dust collection ports regularly.
Checking for Accuracy
- Periodically check that your tabletop is flat.
- Verify that your fence is parallel to the miter slot.
- Check that the insert plate sits flush with the tabletop.
- Ensure your router is securely mounted and not developing play.
Router Maintenance
- Clean your router motor vents regularly.
- Check brushes on universal motors and replace when worn.
- Lubricate the router’s height adjustment mechanism.
- Store bits properly to prevent damage.
Troubleshooting Common Issues
Burn Marks on Wood
- Reduce the depth of cut and make multiple passes.
- Increase your feed rate slightly.
- Check that your bit is sharp and clean.
- Consider using a bit with more cutting edges or a different shear angle.
Rough or Chipped Cuts
- Ensure you’re using a sharp bit.
- Reduce your feed rate for a smoother cut.
- Check that your workpiece is securely supported.
- Consider using a different bit geometry for the material.
Inconsistent Profile Depth
- Verify that your tabletop is flat.
- Check that your fence is secure and not flexing.
- Use feather boards for consistent pressure.
- Make sure your workpiece is flat and not warped.
Conclusion
Mastering how to use a router table opens up a world of woodworking possibilities. From basic edge profiling to complex joinery, a router table is an incredibly versatile tool that can take your projects to the next level.
Remember that practice is key—start with simple operations and gradually work your way up to more complex techniques. Always prioritize safety, invest in quality bits and accessories, and maintain your equipment properly.
With the knowledge from this guide and hands-on experience, you’ll soon be creating professional-quality woodworking projects with confidence and precision. Happy routing!
